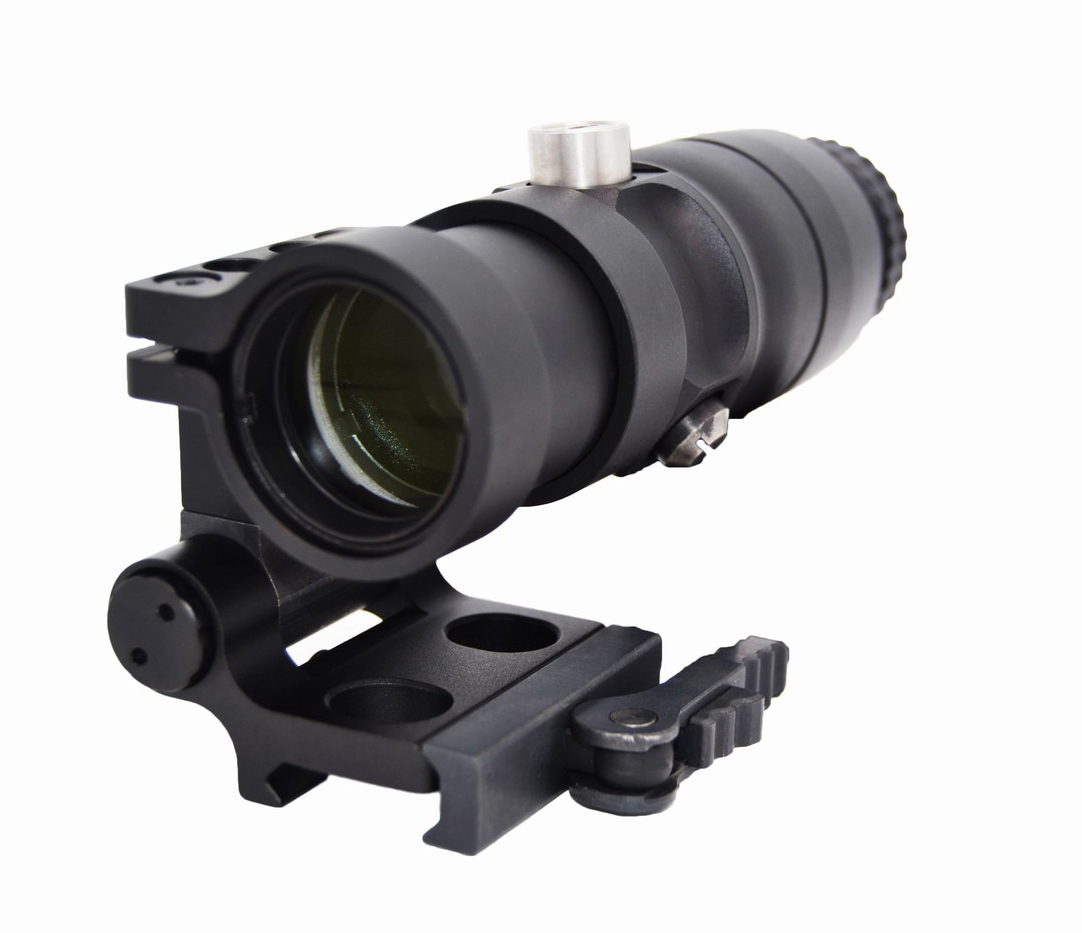

MAG01, MAG03 with QD flip to side mount. Model 3x32, 4x32
Product Key Features
* With premium compact size and light weighted housing, Flip to side mount included.
* With BaK4 prism system, all lens are withfullY multi-coated.
* FTS (flip to side) mount with Quick Detach sytem.
* O-ring seal and Nitrogen filling housing brings excellent fog proof performance.
* Excellent optical sytem brings very clear image.
* Different washers with separate height are available to make this magnifier to fit different guns. (Optional)
* With BaK4 prism system, all lens are withfullY multi-coated.
* FTS (flip to side) mount with Quick Detach sytem.
* O-ring seal and Nitrogen filling housing brings excellent fog proof performance.
* Excellent optical sytem brings very clear image.
* Different washers with separate height are available to make this magnifier to fit different guns. (Optional)
Technical Specifications
| Art. No.: | MAG01 | MAG02 | |||||||
| Magnification: | 3x | 4x | |||||||
| Obj. Dia. | 32mm | 32mm | |||||||
| Tube Diameter: | 30mm | 30mm | |||||||
| Eye Relief: | 75mm | 63mm | |||||||
| Diopter: | ± 2dpt | ± 2dpt | |||||||
| W/E Max. Adj.: | 100moa | 100moa | |||||||
| Length: | 4.6", 112mm | 4.6", 112mm | |||||||
| With QD mount: | Yes | Yes | |||||||
| Waterproof: | Yes | Yes | |||||||
| Shock /fog proof: | Yes | Yes | |||||||
| Surface Finish: | Matte Black | Matte Black | |||||||
| Net Weight: | 183g （Magnifier), 150g ( QD FTS mount) | ||||||||
| Accessories: | Rubber caps, Allen Key, cleaning cloth,manual. | ||||||||
| Package: | 4-color printing gift box (Customized service available) | ||||||||
